Drilling Tools

We offer a full line of drilling tools for pile diameter 500 mm to 2000 mm. We design and manufacture, anchor drilling equipment, pile driving equipment and other special drilling tools. With every machine we engineer, we prioritize quality, innovation, reliability and apply the right technology for each application

Our range of Drilling Tools

Augers
Buckets

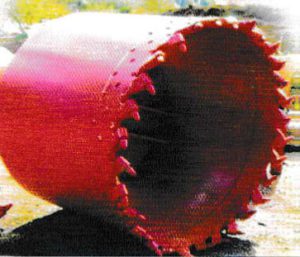

Core Barrel
Tremie Sets
Pumps

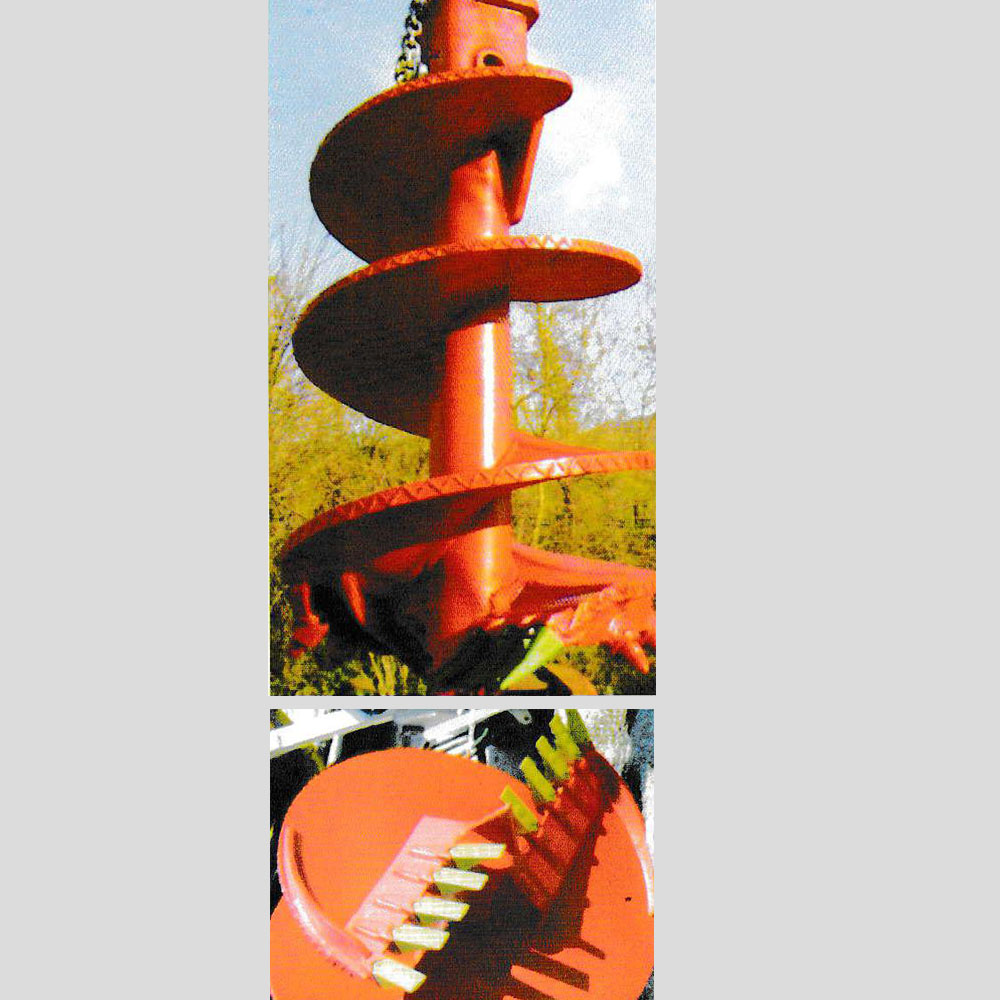

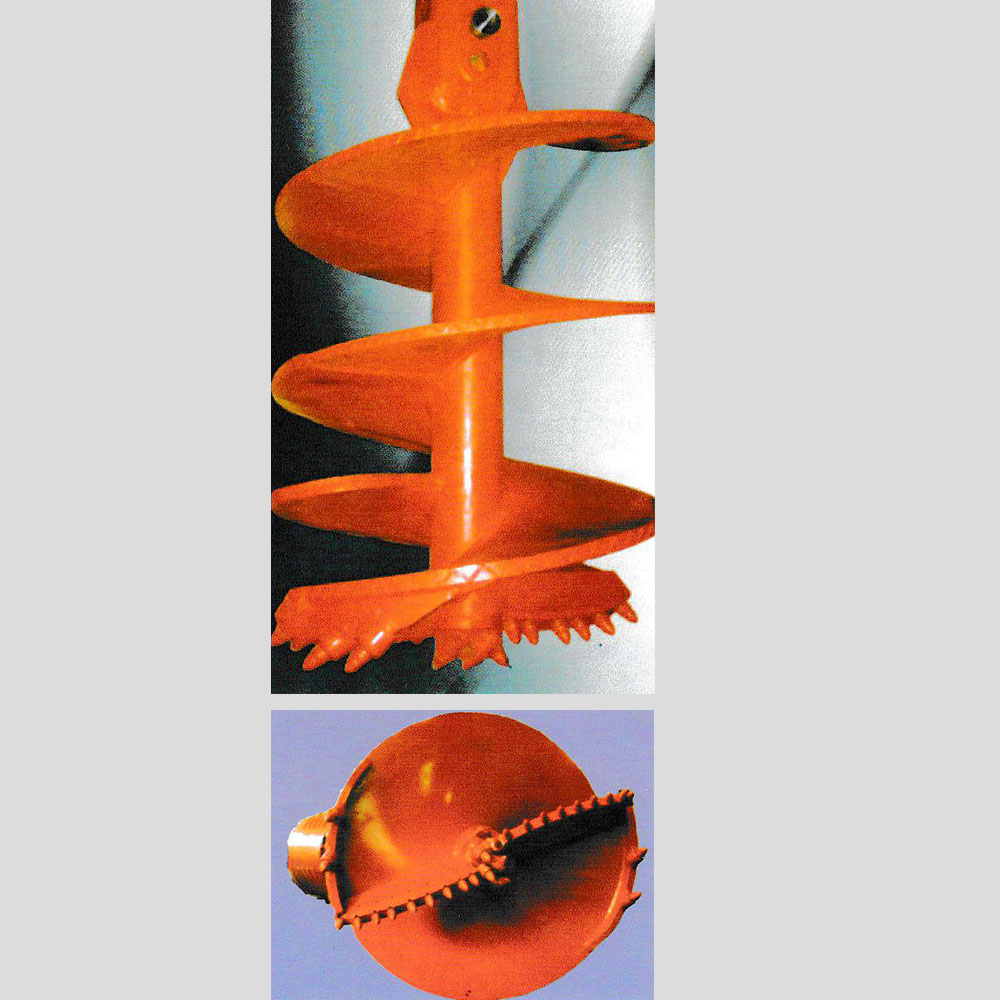

We manufacture high-quality custom-built augers, used for boring holes through surfaces like soil, wood, ice, stone, rock or pavement. We have several different designs of augers for drilling and sampling soils, clays and rocks. These Augers can be used for a wide variety of applications from digging a mere hole in the soil to drilling deep into the earth through rock.

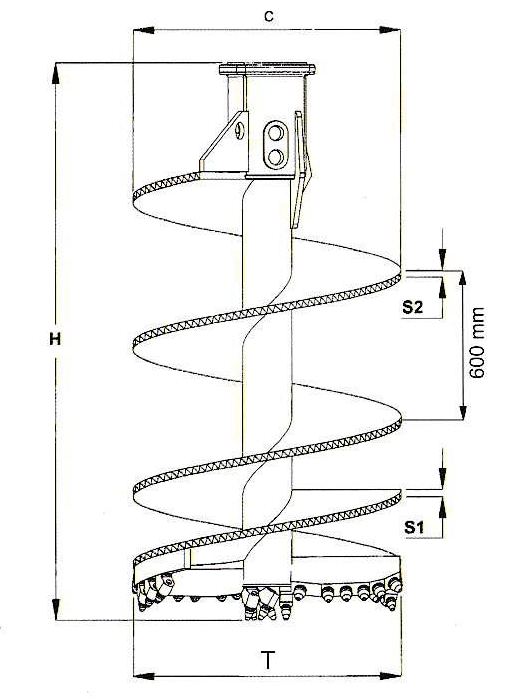

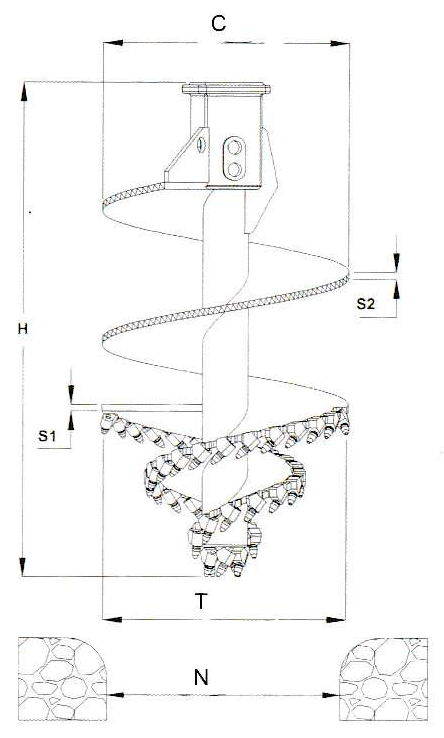

Auger Specification

Soil Augers
N T C S2 S1 H
mm mm mm mm mm mm
500 470 420 25 25 1600
600 570 520 25 25 1600
700 670 620 25 25 1600
800 770 700 30 30 1600
900 870 800 30 30 1600
1000 970 900 32 32 1600
1100 1070 1000 32 32 1600
1200 1170 1100 32 32 1600
1300 1270 1200 32 32 1600
1400 1370 1300 32 38 1600
1500 1470 1400 32 38 1600

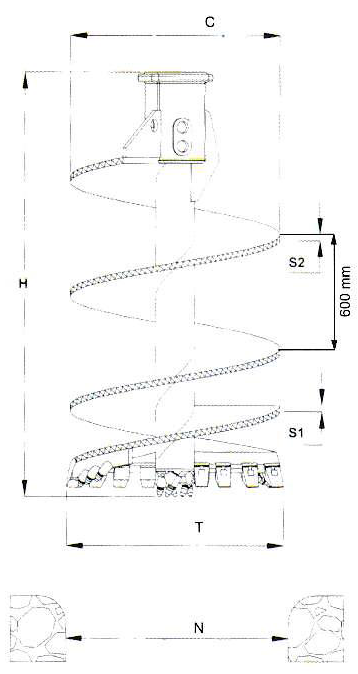

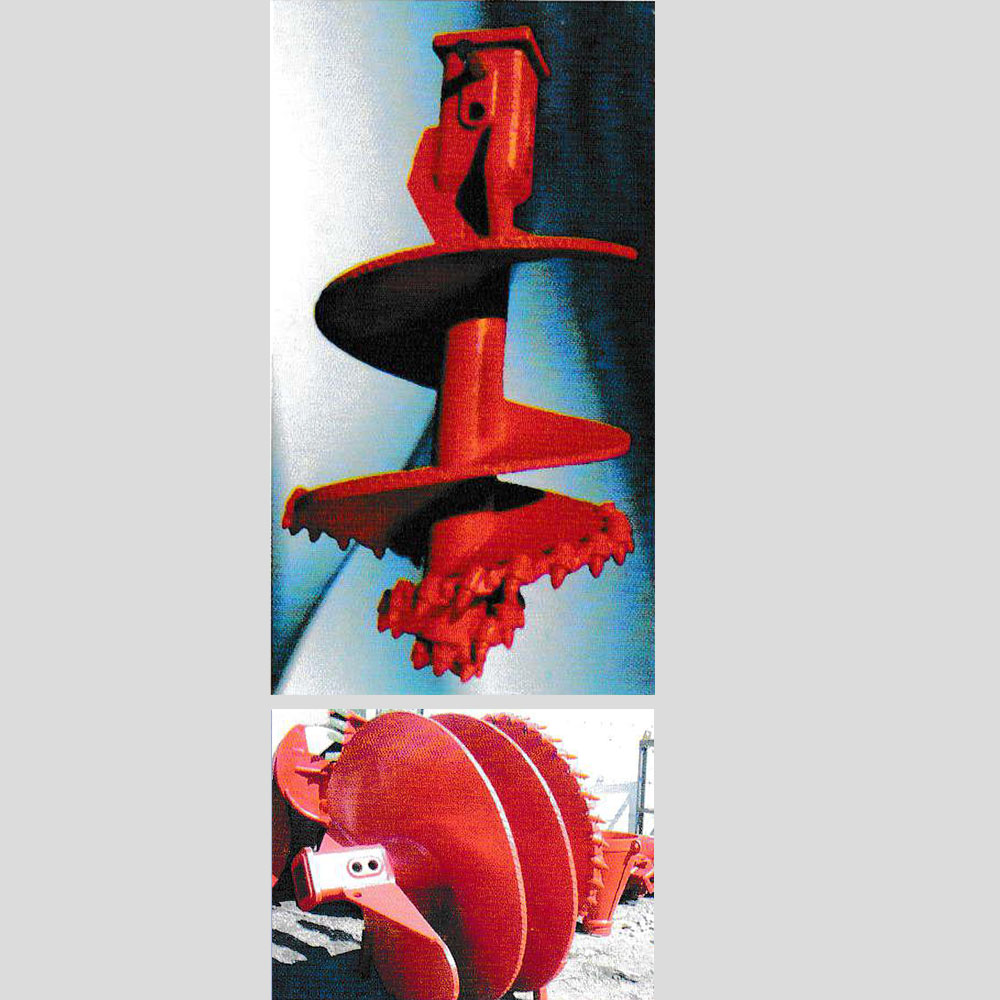

Rock Augers
N T C S2 S1 H
mm mm mm mm mm mm
500 470 420 25 25 1600
600 570 520 25 25 1600
700 670 620 25 25 1600
800 770 700 30 30 1600
900 870 800 30 30 1600
1000 970 900 32 32 1600
1100 1070 1000 32 32 1600
1200 1170 1100 32 32 1600
1300 1270 1200 32 32 1600
1400 1370 1300 32 38 1600
1500 1470 1400 32 38 1600

Conical Rock Augers
N T C S2 S1 H
mm mm mm mm mm mm
500 470 420 25 25 1600
600 570 520 25 25 1600
700 670 620 25 25 1600
800 770 700 30 30 1600
900 870 800 30 30 1600
1000 970 900 32 32 1600
1100 1070 1000 32 32 1600
1200 1170 1100 32 32 1600
1300 1270 1200 32 32 1600
1400 1370 1300 32 38 1600
1500 1470 1400 32 38 1600

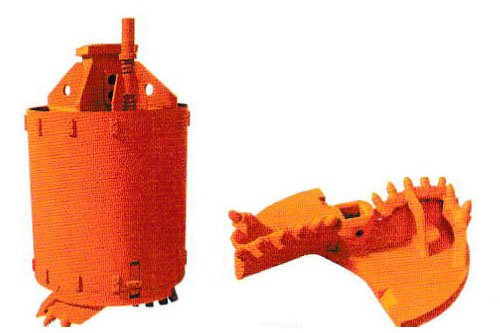

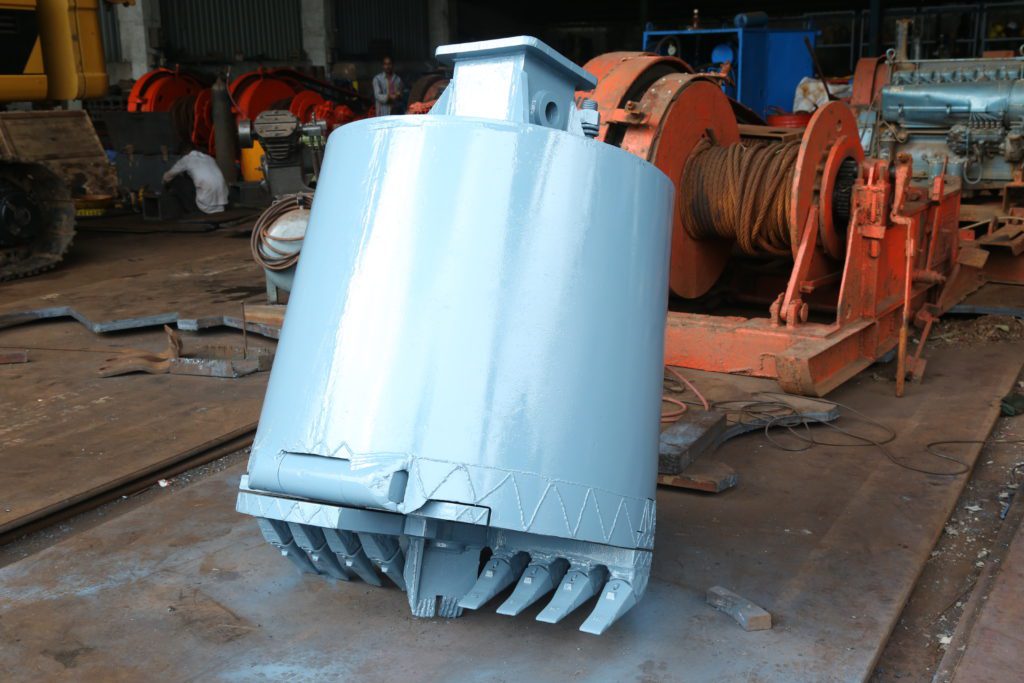

We manufacture Soil and Rock Buckets to cater to our customer’s requirements. Customization is available, on request and our design and manufacturing teams ensure that our customers’ needs are met in every way.

PPS Soil Buckets
  • Single Cut Soil Buckets
  • Double Cut Soil Buckets
  • Drilling Diameter Range: 500-1500 mm
  • Barrel Length: 100-1500 mm

*Kelly box size can be manufactured as per customer requirements

PPS Rock Buckets
  • Single Cut Rock Buckets
  • Double Cut Rock Buckets
  • Drilling Diameter Range: 400-1500 mm
  • Barrel Length: 100-1500 mm

*Kelly box size can be manufactured as per customer requirements

Specifications

Drilling Dia Tools Dia
mm mm
500 460
600 560
700 660
800 760
900 860
1000 970

Drilling Dia Tools Dia
mm mm
1100 1070
1200 1170
1300 1270
1400 1370
1500 1470

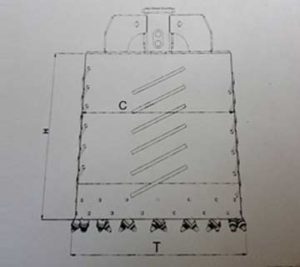

N T C H
mm mm mm mm
400 370 320 1000
500 470 420 1000
600 570 520 1000
700 670 620 1000
800 770 700 1000
900 870 800 1000

N T C H
mm mm mm mm
1000 970 900 1000
1100 1170 1000 1000
1200 1170 1100 1000
1300 1270 1200 1000
1400 1370 1300 1000
1500 1470 1400 1000

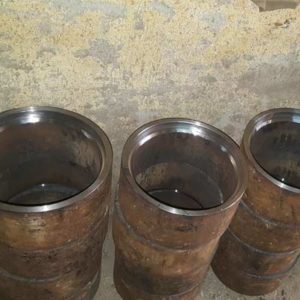

Wire Locking Tremie Sockets

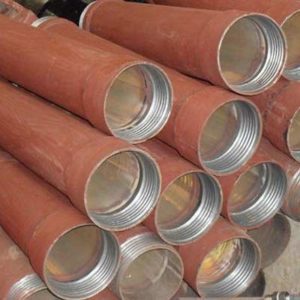

Tremie Pipes

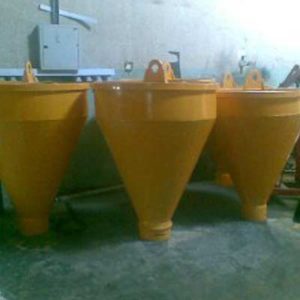

Tremie Hoppers

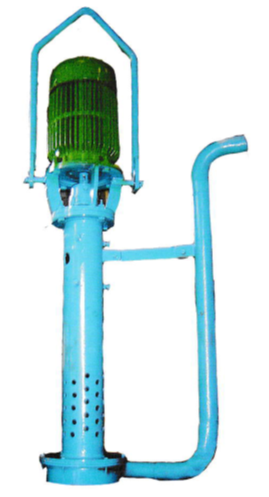

We are manufactures of all types of Bentonite Mixing & Circulation Vertical Pumps with 15 to 30 HP Motor delivery 480 gallons to 1000 gallons per minute.

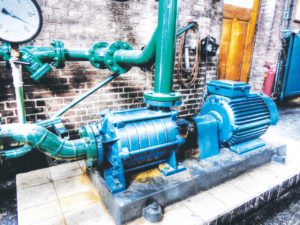

We also manufacture a large discharge capacity. High-performance Centrifugal Rubber lined Mud Pumps with 90 HP Prime Mover delivery 20000 gallons per minute.



We also manufacture Bailors, De-Sanders, Cleaning Buckets, Tripod & DMC Apparatus.
Kindly mail us at sales@pcfpl.com for more details.
